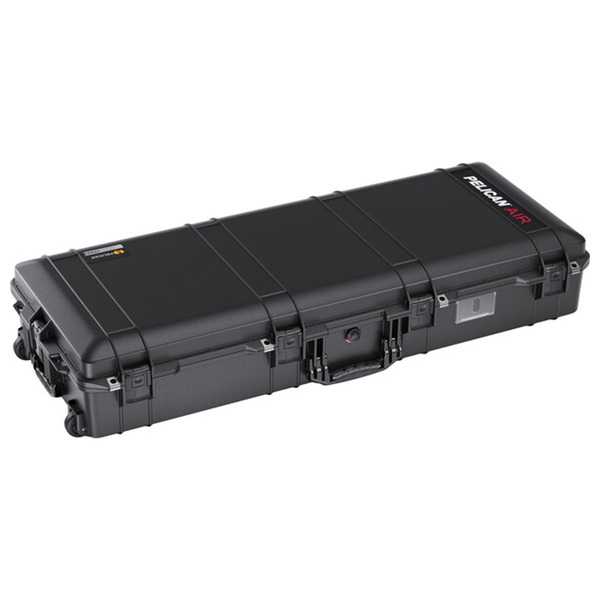

We’ve stretched out our line of Pelican™ Air cases, so now you can protect your long equipment inside the world’s toughest and lightest case. 44” long with built in wheels and 40% lighter than other polymer cases, the Pelican™ Air 1745 case keeps you rolling and provides the perfect leg room to protect compound bows, survey equipment, camera tripods and other lengthy equipment.

With 8” of internal space and two layers of custom foam* (pelicanfoam.com) or standard issue Pick N Pluck™ foam, the Pelican™ Air 1745 is our deepest long case that provides the option to stack multiple items on both bottom and top layers or just use the top layer to nestle long individual equipment.

The Pelican™ Air 1745 case is also the first Pelican™ Air case to feature Press and Pull™ latches, tested for extreme pressure and impact situations. These latches keep the lid shut through rough handling but are easy to open on arrival.

Pelican™ Air 1745 case: The long haul just got easier.

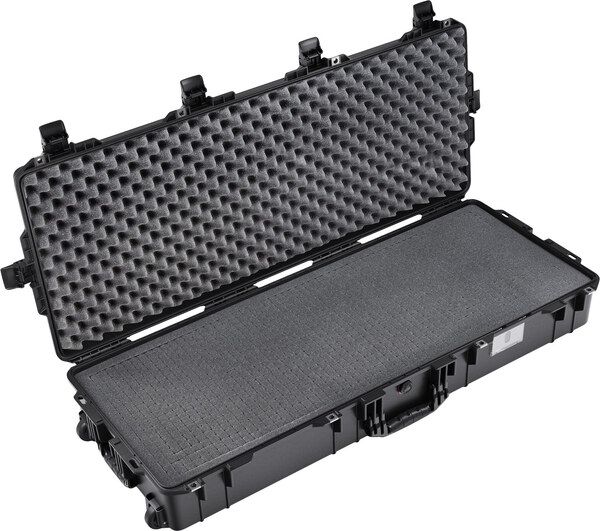

The With Foam (1745WF) configuration includes:

• 1745 Air Long Case
• Foam Layers
  • Foam Layer 1 (Lid) - 6.4 cm Convolute
  • Foam Layer 2 (Base) - 5.6 cm Pick N Pluck (.50" x .50" squares)
  • Foam Layer 3 (Base) - 5.6 cm Pick N Pluck (.50" x .50" squares)
  • Foam Layer 4 (Base) - 1.3 cm Solid

• Waterproof, crushproof, dustproof
• Super-light proprietary HPX²™ Polymer - up to 40% lighter
• Press and Pull™ Latches
• Quiet rolling stainless-steel bearing wheels
• User-customizable Pick N Pluck™ foam
• Fold down over-molded handle
• Waterproof O-ring seal
• Business card holder
• Automatic pressure equalisation valve - balances interior pressure, keeps water out
• Stainless steel padlock protectors
• IP67 & MIL-SPEC certified

DIMENSIONS

Interior (L×W×D)

111.8 x 42.6 x 20.2 cm

Exterior (L×W×D)

118.6 x 49.2 x 22.2 cm

MEASUREMENTS

Lid Depth

6.4 cm

Bottom Depth

13.8 cm

Total Depth

20.2 cm

Int Volume

0.096 m³

Padlock Hole Diameter

0.8 cm

WEIGHTS

Weight With Foam

9.6 kg

Weight Empty

7.8 kg

MATERIALS

Body Material

Proprietary Polypropylene Blend

Latch Material

ABS

O-Ring Material

EPDM

Purge Body Material

ABS

Purge Vent Material

Hi-Flow Gore-Tex 3 Micron Hydrophobic Non-Woven

TEMPERATURES

Minimum Temperature

-60° F (-51 ° C)

Maximum Temperature

160° F (71 ° C)
